| HOME > 제품소개 > SMD Power Inductor |
|
|
| |
 |
| |
| <NS-OPEN-TYPE> |
 |

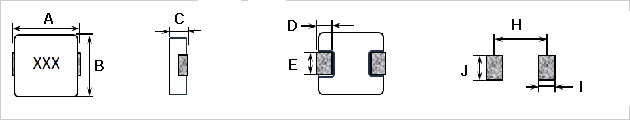

| (Unit
: mm) |
| Size Code |
A |
B |
C |
H |
K |
I |
Reel Packing |
| NS4532 |
4.5±0.3 |
4.0±0.3 |
3.2±0.3 |
4.5 |
1.5 |
4.5 |
2,000pcs |
| NS5845 |
5.8±0.3 |
5.2±0.3 |
4.5±0.3 |
5.5 |
1.7 |
5.8 |
1,000pcs |
| NS7850 |
7.8±0.3 |
7.0±0.3 |
5.0±0.5 |
7.5 |
2.0 |
7.8 |
1,000pcs |
| NS1054 |
10.0±0.4 |
9.0±0.4 |
5.4±0.4 |
9.5 |
2.5 |
10t |
1,000pcs |
|
|
| |
 ORDERING CODE |
Features |
| ① Series name |
Silver Plated Type, Low cost design. |
| ② Size Code |
High power, High saturation inductors. |
| ③ Inductance(R=Decimal Point) Unit:uH |
Ideal inductors for DC-DC conversion. |
| ④ Inductance tolerance: M:±20%, N:±15%, K:±10% |
Available on tape and reel for auto surface mountiong |
| ⑤ Lead Free |
|
| |
|
|
| <NS-SHIELD TYPE> |
 |
| (Unit
: mm) |
| Size Code |
A |
B |
C |
H3 |
H |
K |
I
|
Reel Packing |
| NS7346 |
7.3±0.2 |
1.8±0.2 |
4.8±0.2 |
4.6±0.3 |
2.3 |
4.2 |
7.6
|
1,000pcs |
| NS1050 |
10.0±0.3 |
4.2±0.3 |
6.0±0.2 |
6.0±0.3 |
4.0 |
6.0 |
10.4
|
700pcs |
| NS1260 |
12.0±0.5 |
5.0±0.2 |
8.0±0.3 |
6.0±0.5 |
5.4 |
7.0 |
12.8t
|
500pcs |
| NS1280 |
12.0±0.5 |
5.0±0.2 |
8.0±0.3 |
8.0±0.5 |
5.4 |
7.0 |
12.8
|
500pcs |
| NS1390 |
12.6±0.3 |
3.0±0.1 |
8.6±0.3 |
9.0±0.1 |
3.2 |
8.6 |
13.6
|
400pcs |
| NS1580 |
14.8±0.3 |
5.5±0.2 |
9.6±0.2 |
8.0±0.3 |
6.3 |
8.0 |
15.4
|
350pcs |
|
|
| |
| ORDERING CODE |
Features |
| ① Series name |
* High power, High saturation inductors. |
| ② Size Code |
* With magnetic shield against radiation. |
| ③ Inductance(R=Decimal Point) Unit:uH |
* Directly connected electrode on ferrite core |
| ④ Inductance tolerance: M:±20%, N:±15%, K:±10% |
* Highly accurate dimenensions for automatic mountig. |
| ⑤ Lead Free |
|
|
|
| <NSPC-Metal Core TYPE> |
 |
| (Unit
: mm) |
| Size Code |
A |
B |
C |
H3 |
H |
K |
I
|
Reel Packing |
| NSPC4020 |
4.6±0.25 |
4.1±0.25 |
|
2.0 MAX |
1.5 |
1.6 |
4.6
|
3,500pcs |
| NSPC1250 |
13.5±0.5 |
12.7±0.5 |
|
5.0MAX |
2.5 |
8.5 |
13.5
|
500pcs |
| NSPC1707 |
17.5±0.5 |
17.5±0.5 |
|
6.8±0.4 |
3.5 |
8.5 |
17.5
|
600pcs |
|
|
| |
| ORDERING CODE |
Features |
| ① Series name |
* Metal
core
. High power,inductors. |
| ② Size Code |
* With magnetic shield against radiation. |
| ③ Inductance(R=Decimal Point) Unit:uH |
* Directly connected electrode on ferrite core |
| ④ Inductance tolerance: M:±20%, N:±15%, K:±10% |
* Highly accurate dimenensions for automatic mountig. |
| ⑤ Lead Free |
|
|
|
|
|
|
